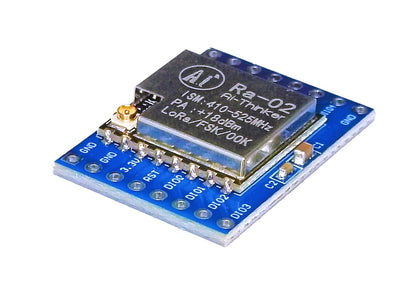

SX1278 LoRa Module

SX1278 LoRa Module

Regular price Rs. 683.00
Regular price Sale price Rs. 683.00
Sale Sold out
Shipping calculated at checkout.

SX1278 LoRa Module utilizes advanced LoRa spread spectrum technology for long-range communication up to 10,000 meters, featuring high sensitivity at -148 dBm and low power consumption. Ideal for applications like meter reading, smart home devices, and burglar alarms due to its robust anti-jamming capability and efficient air wake-up function.

Specifications

Feature Specification
Modulation Technology LoRa Spread Spectrum
RF Power Output +20 dBm (100 mW)
Communication Mode Half-duplex SPI
Modulation Modes FSK, GFSK, MSK, GMSK, LoRa, OOK
RF Signal Detection Automatic RF Signal Detection, CAD Mode
AFC Very high speed AFC
Packet Engine CRC up to 256 bytes
Antenna Spring Antenna
Communication Distance 15 km
Sensitivity Down to -148 dBm
Programmable Bit Rates Up to 300 kbps
RSSI Dynamic Range 127 dB
Wireless Frequency 433 MHz
Working Voltage 1.8-3.7 V
Working Temperature Range -40°C to +80°C
Package Small footprint dual-row stamp-hole patch package
Housing Shielded
