RYS8830

RYS8830

Rs. 1,249.00
Rs. 1,249.00
Sale Sold out
Shipping calculated at checkout.

Description

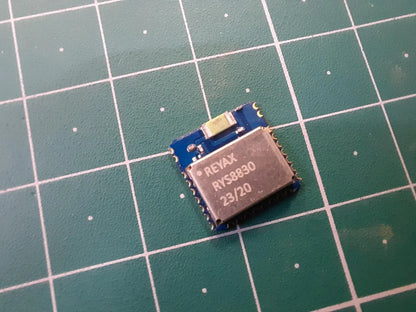

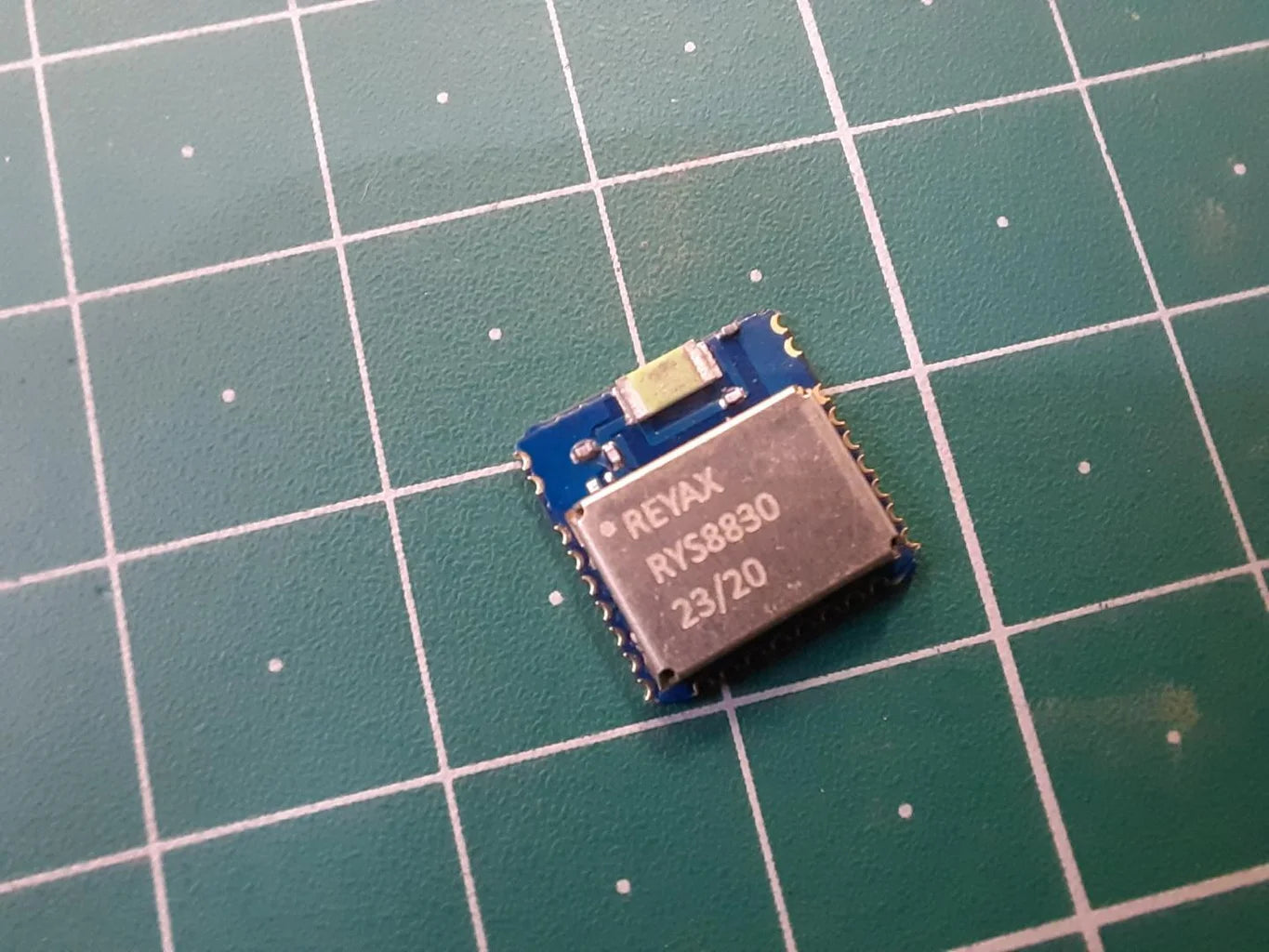

The REYAX RYS8830 is a high-performance GNSS antenna module built on the SONY CXD5605GF and CXD5605AGF GNSS engines. It supports concurrent reception of multiple GNSS systems, providing high sensitivity in a compact SMD form factor.

Specifications

Feature Description
GNSS Engine SONY CXD5605GF / CXD5605AGF
Supported GNSS Systems GPS, GLONASS, SBAS, QZSS, BeiDou, Galileo
Form Factor Small SMD, 121 mm²
Position Accuracy Up to 1.0 m CEP
Embedded Antenna Yes
Optional External Antenna Yes
Enhanced GNSS Filter Yes
Low Noise Amplifier Yes
Power Consumption Ultra-low
Interface UART/I2C, operates at 1.8V
