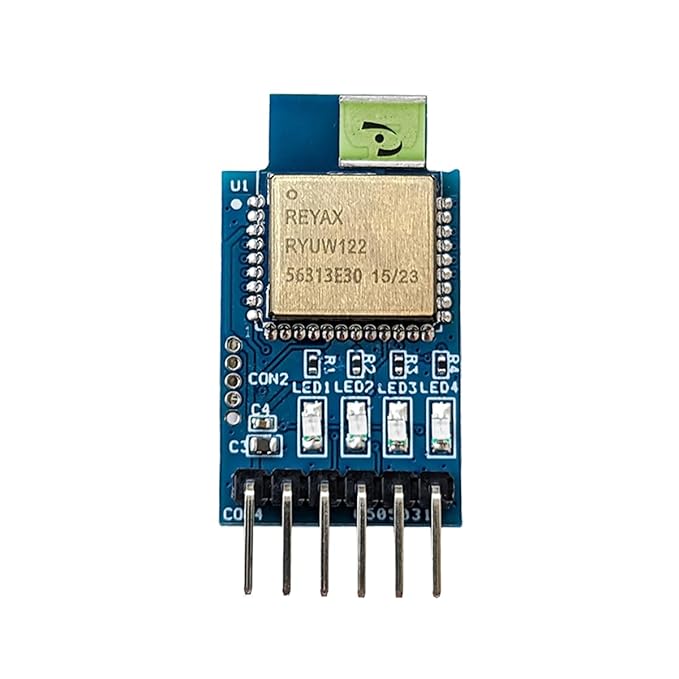

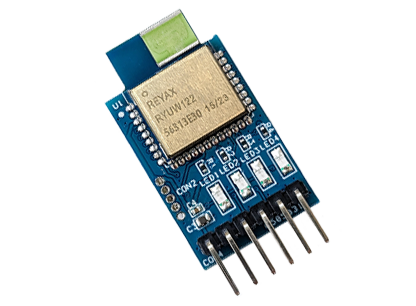

The REYAX RYUW122_LITE is a high-quality Ultra-Wideband (UWB) module designed for secure and precise distance measurement. It operates with a frequency range typically around 6.5 GHz to 8 GHz and comes with an integrated UWB antenna. The module is available in a DIP version, making it suitable for various evaluation and development purposes.
Specifications:
Feature
Description
IEEE802.15.4-2015 UWB
Supported
IEEE802.15.4z (BPRF mode)
Supported
Supported Channels
Channel 5 (6489.6 MHz) & Channel 9 (7987.2 MHz)
UWB Radio Regulatory Compliance
Worldwide
Location Accuracy
10 cm
Control Method
Easily controlled by AT commands
Capabilities
Precision location and data transfer simultaneously
