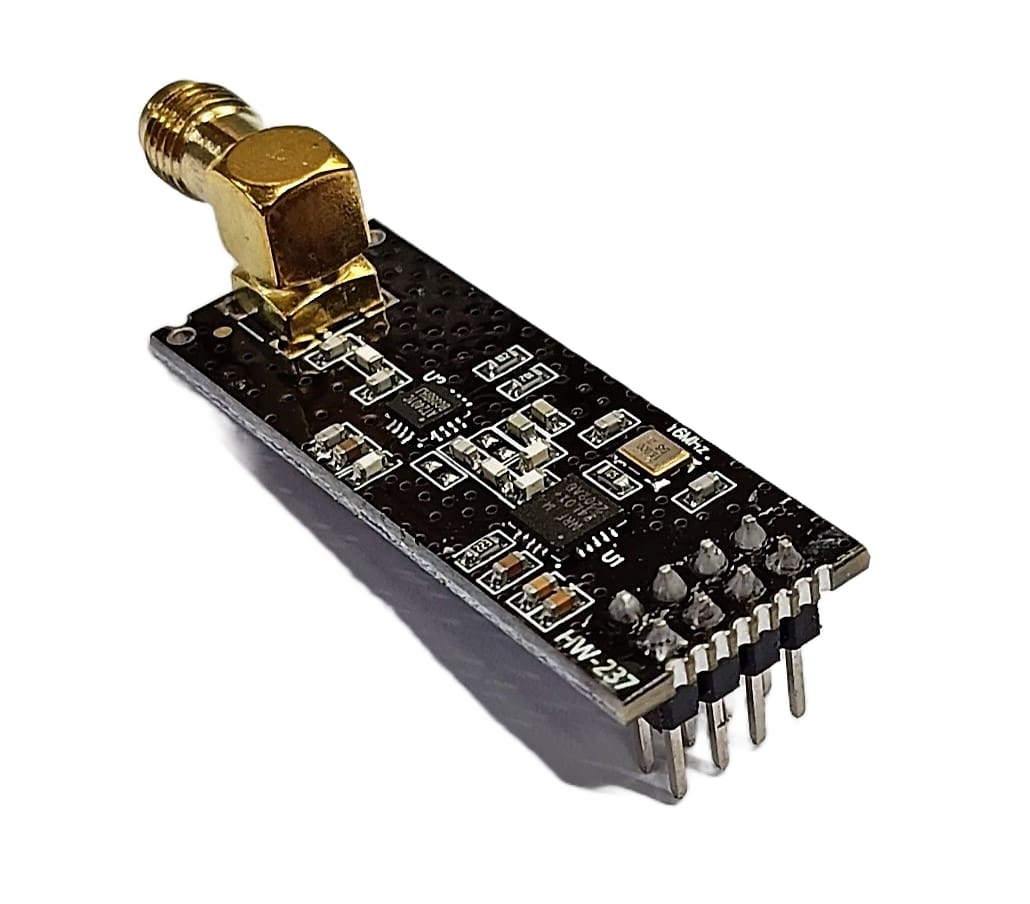

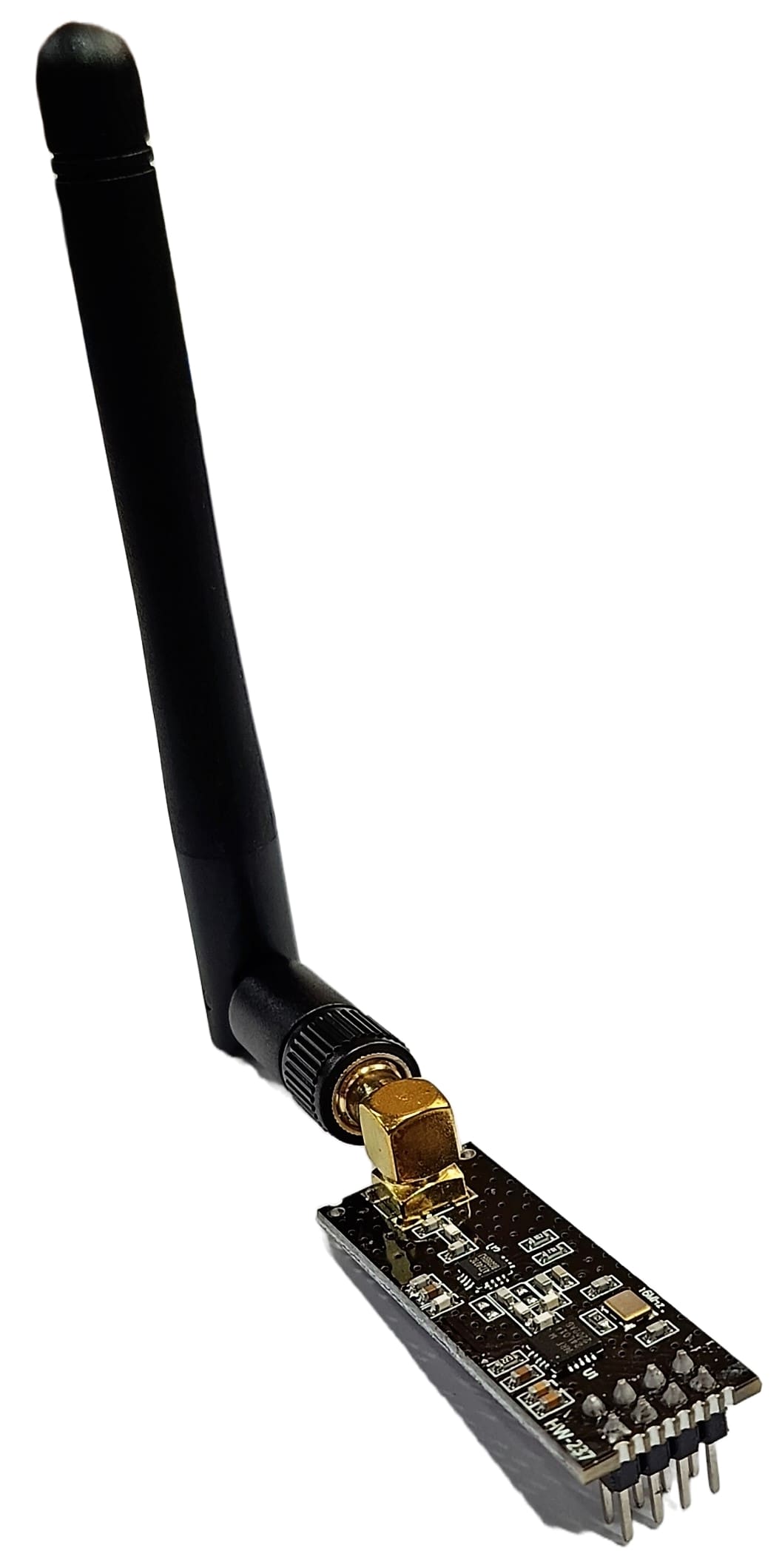

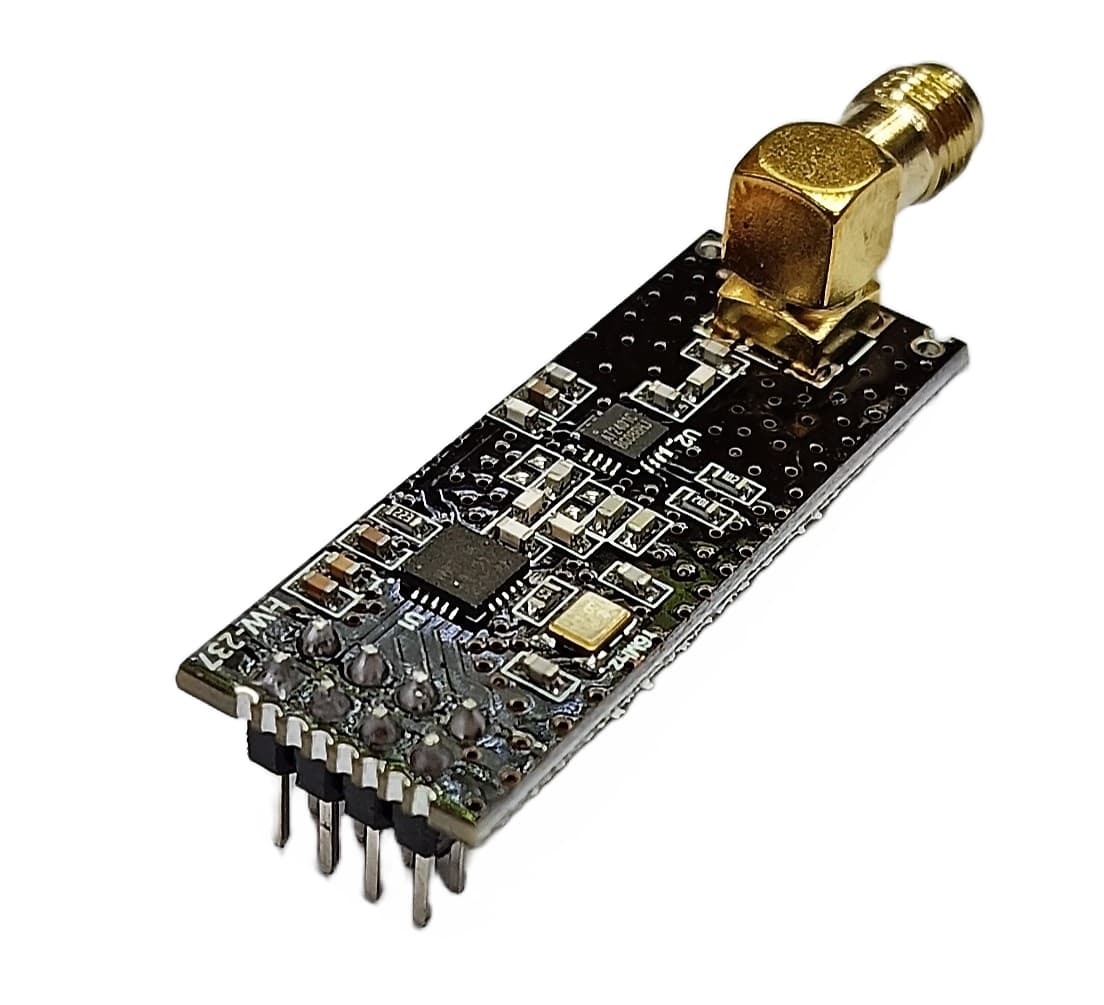

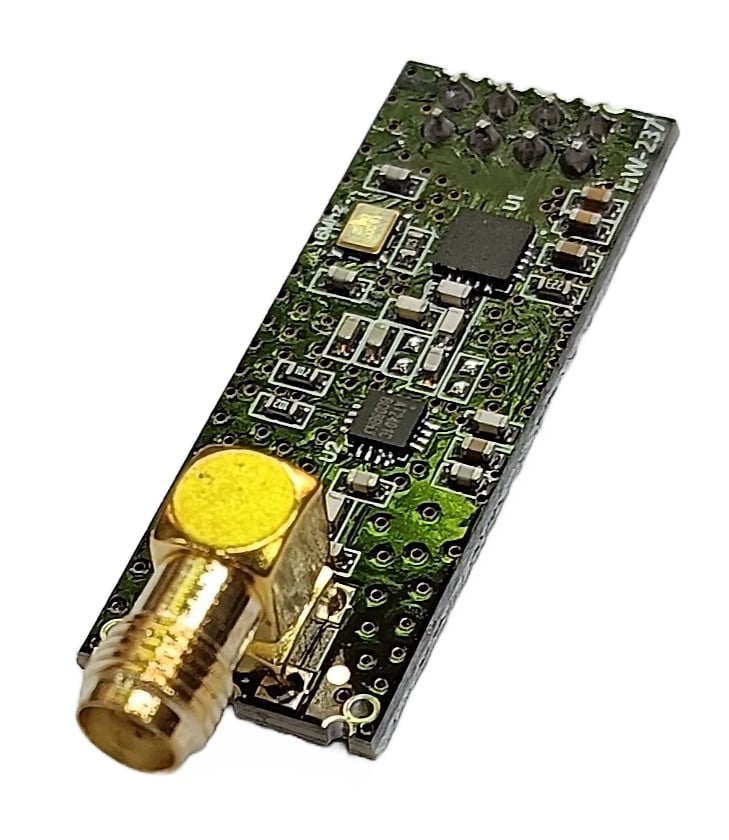

The NRF24L01 2.4GHz PA+LNA SMA Wireless Transceiver Module with Antenna is an advanced RF module that utilizes the NRF24L01+ transceiver from Nordic Semiconductor. Operating in the 2.4GHz band, this transceiver boasts features such as additional pipelines, buffers, and an auto-retransmit feature. The module includes a reverse polarized SMA connector and an onboard PA and LNA circuit, enhancing its RF range. Equipped with a 2DB antenna, it achieves a transmission rate of 250Kbps and can communicate over distances of 800-1000 meters in open air. This module is cost-effective and easy to integrate with MCU/ARM/PIC/AVR/STM32 systems, making it an excellent choice for wireless communication setups.
Features
Feature
Details
Frequency Band
2.4GHz global open ISM band, license-free
Transmit Power
Greater than +20 dBm
Data Reception
Supports six-channel data reception
Speed
2Mbit/s, suitable for high-quality VoIP
Frequency Points
125 frequency points for multi-point communications and frequency hopping
Cost
Low cost, integrated with high-speed signal processing parts
Additional Features
Automatic re-send of lost packets, generation of acknowledge signals
Interface
SPI interface for communication with MCU I/O port
Development
Facilitates development without needing RF part development
Compatibility
Fully compatible with NRF24L01 modules through software programming
Package Includes
1 x 2.4GHz NRF24L01 Transceiver Module, 1 x SMA Antenna
