MIFARE RC522 13.56 MHz RFID Reader Writer
MIFARE RC522 13.56 MHz RFID Reader Writer
Regular price
Rs. 104.00
Regular price
Sale price
Rs. 104.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description

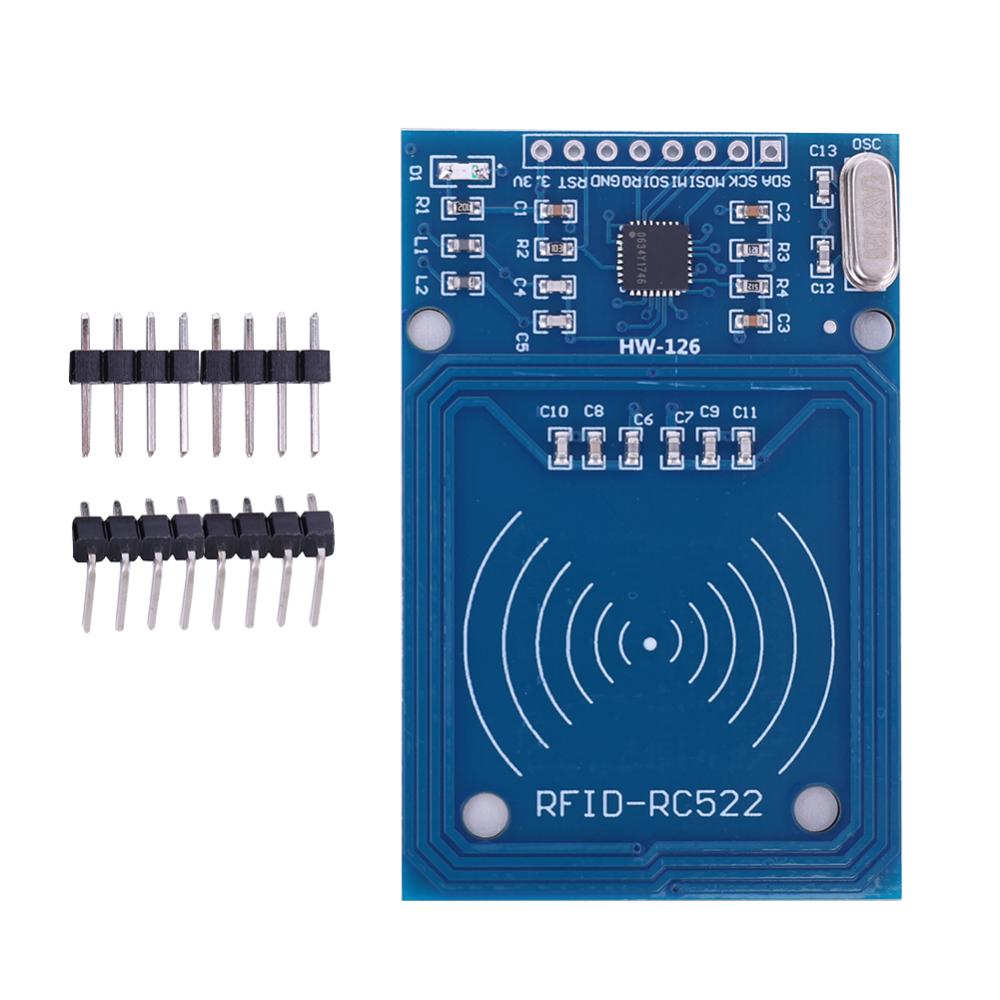

MIFARE RC522 13.56 MHz RFID Reader Writer Kit includes 13.56 Mhz RF reader cum writer, which is based on RC522 chip and two S50 cards. The MFRC522 is a highly integrated reader / writer for contact less communication at 13.56 Mhz. The MFRC522 reader supports ISO 14443A / MIFARE mode.
Specifications
| Feature | Details |
|---|---|
| Highly Integrated analog circuitry | to demodulate and decode responses |
| Buffered output drivers | to connect an antenna with minimum number of external components |
| Supports | ISO/IEC 14443A / MIFARE |
| Typical operating distance in Reader / Writer mode | 50 mm depending on the antenna size and tuning |
| Supports higher transfer speed communication | up to 848 Kbit/s |
| SPI Interface | up to 10 Mbit/s |
| Power Supply | 3.3 V |
| Operating Current | 13 mA to 26 mA @ 3.3 VDC |
| Idle Current | 10 mA to 13mA @ 3.3 VDC |
| Sleep Current | < 80 µA |
| Peak Current | < 30 mA |
| Operating Frequency | 13.56 MHz |
| Supported Card Types | MIFARE1 S50, MIFARE1 S70, MIFARE ULTRALIGHT, MIFARE PRO, MIFARE DESFIRE |
| Reader Distance | >= 50mm / 1.95″ (MIFARE 1) |

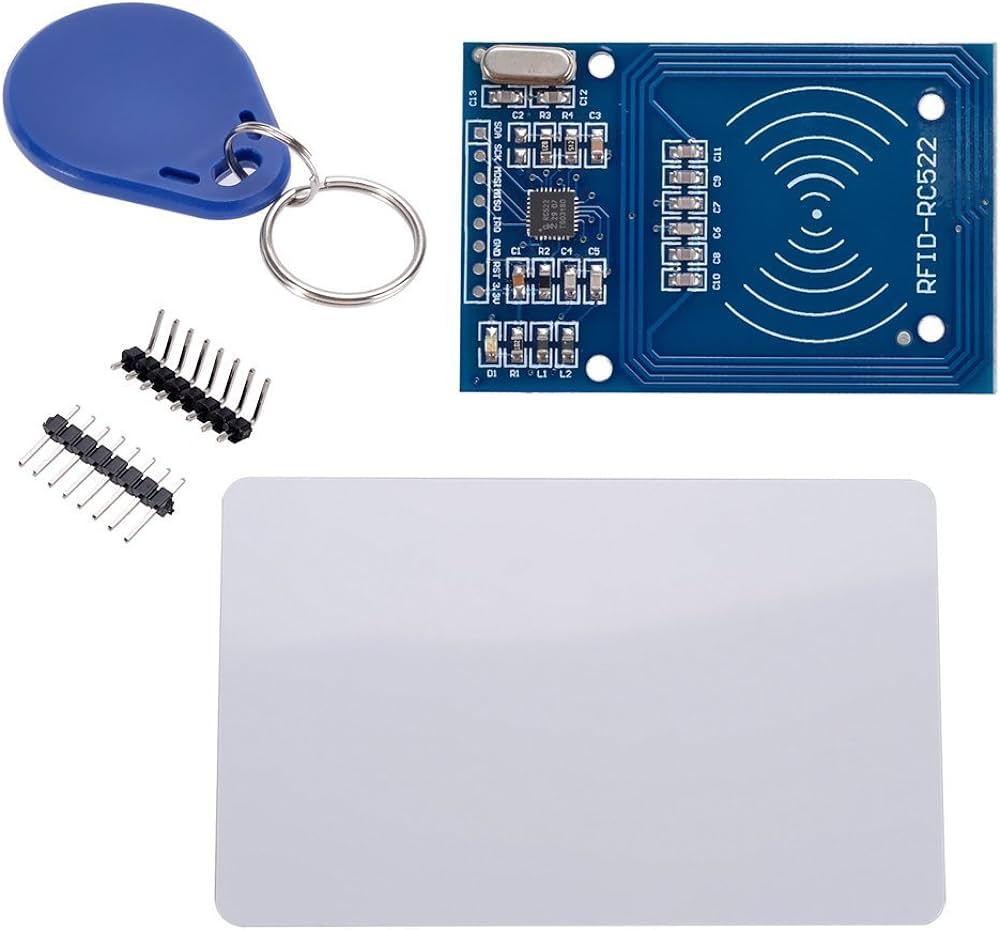

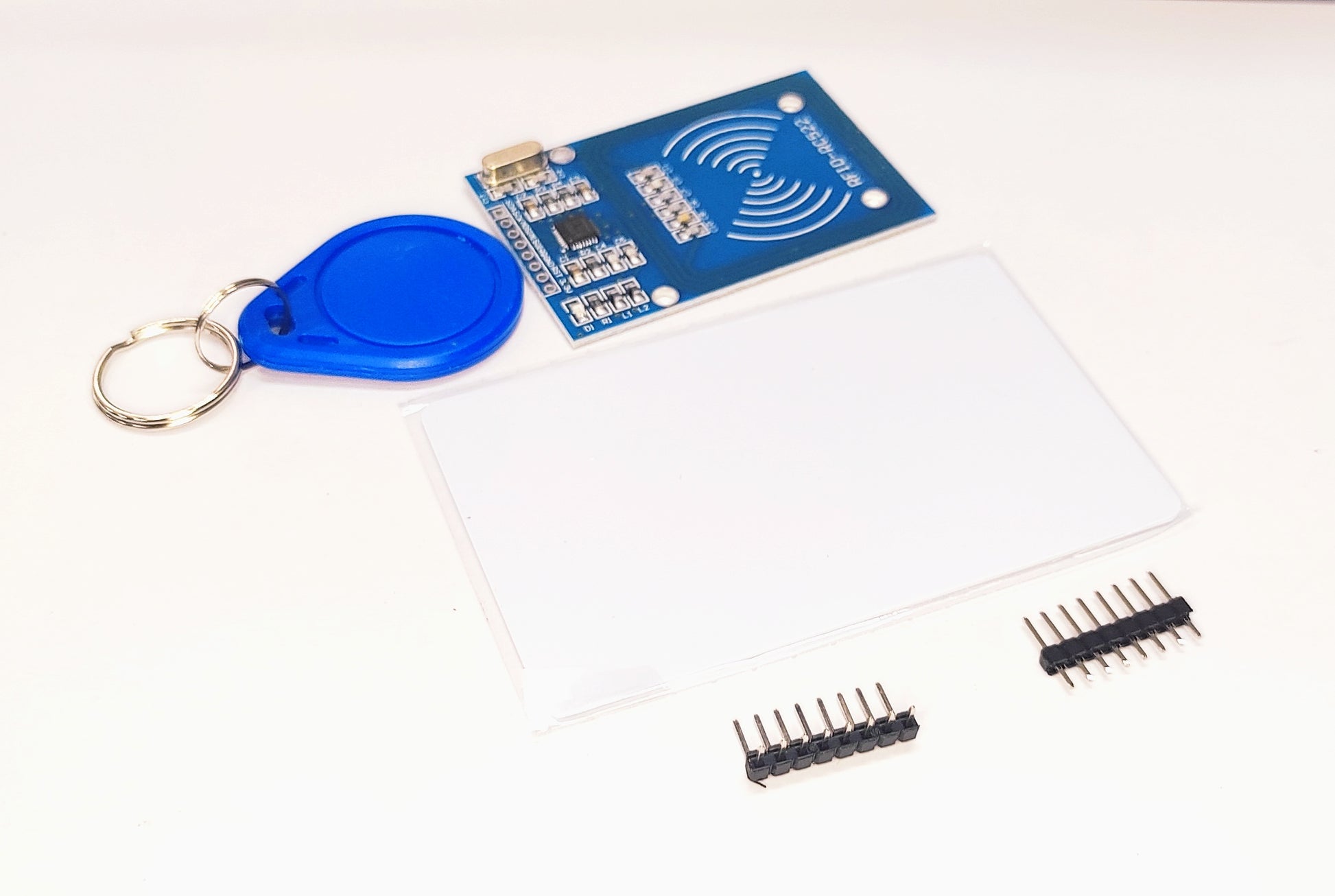

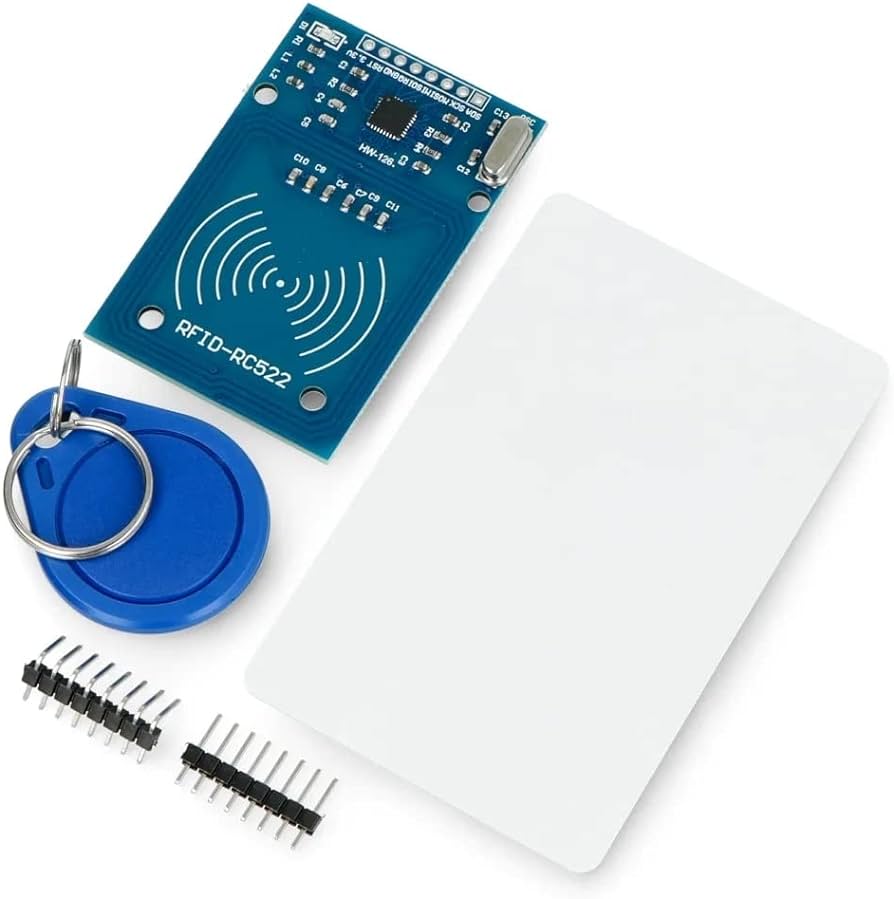

| Package Includes |
RFID MFRC522 Reader / Writer Module x 1 Standard S50 Blank Card x 1 S50 key chain type Card x 1 Straight pin x 1 Right Angle pin x 1 |
| Additional Information | RFID cards compatible to RC522 is Mifare 1K |
