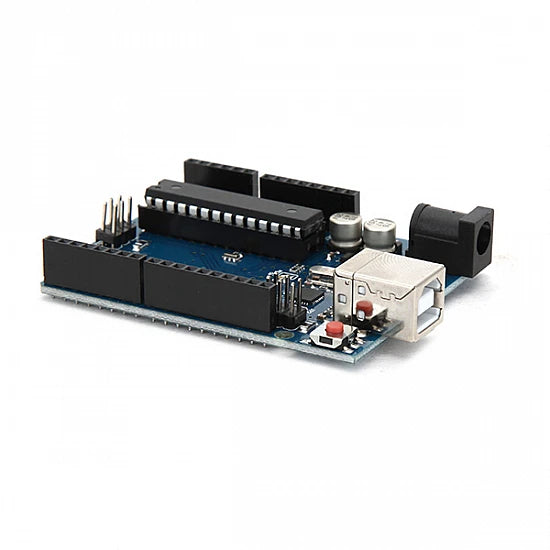

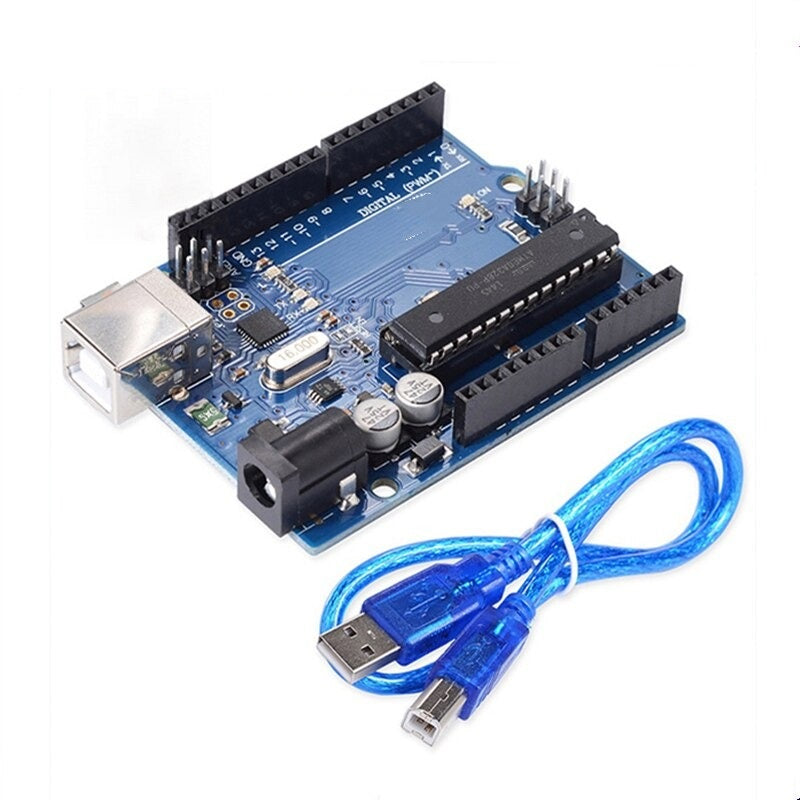

Arduino UNO R3 Compatible Board
Arduino UNO R3 Compatible Board
Regular price
Rs. 660.00
Regular price
Sale price
Rs. 660.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The Arduino UNO board features 14 digital input/output pins, 6 PWM outputs, 6 analog inputs, a 16 MHz ceramic resonator, USB connection, power jack, ICSP header, and reset button. It includes everything necessary to operate the microcontroller and can be connected to a computer or powered with an AC-to-DC adapter or battery. Its user-friendly design allows for experimentation without the risk of damage.
Specifications
| Microcontroller Chip | ATmega328 |
| Analog I/O Pins | 6 |
| Digital I/O Pins | 14 (of which 6 provide PWM output) |
| DC Current per I/O Pin | 40 mA |
| DC Current for 3.3V Pin | 50 mA |
| SRAM | 2 KB |
| EEPROM | 1 KB |
| Flash Memory | 32 KB of which 0.5 KB used by bootloader |
| Clock Speed | 16 MHz |
| Operating Voltage | 5V |
| Input Voltage |
7-12V |
| Input Voltage (limit) |
6-20V |
